Swimming Pool Ice Damage in Winter.

How Big a Threat is this?

The very short answer to this question is that any swimming pool located anywhere where the ice thickness is likely to exceed 5 centimetres is vulnerable to being damaged in the winter if special precautions are not taken.

Let's Have a Quick Look at the Climate Issue

First of all let's get global warming out of the way.

My personal view is this:-

You will have your own views but if you are convinced that we will never have another cold winter because of global warning I would leave this page now because there is no point in you reading on.

The Northern Hemisphere Climate Cycle

Sunspots

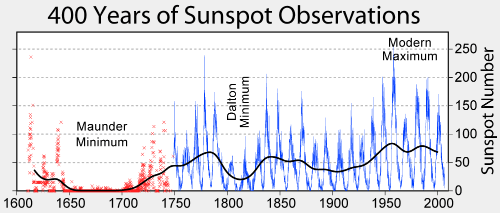

If you look at the following graph you will see that our Northern Hemisphere Climate is affected by sunspot activity. Putting it crudely the more sunspots there are, the brighter the sun is and the hotter the weather.

sunspot activity graph

The Maunder minimum is associated with the mini Ice Age in the late 1600's when they used to hold fairs on the River Thames in the winter and there were similar conditons during the 1800's associated with the Dalton Minimum

There is little doubt that the steady increase in temperature from 1900 to 1950 is predominantly caused by the increase in sunspot activity and probably by global warming but we just do not know how much can be attributed to each factor.

The most prominent feature of the graph is the 11 year cycle that shows minimums in sunspot activity in the years 1953-1954, 1964-1965, 1975-1976, 1986-1987, 1997-1998 and 2008-2009. The cycle length itself is not important because it is the height of the peaks in the graph that effect the temperatures on earth.

We proably had very cold winters in the early 1960's and 1970's because of the low peak in sunspot activity around 1970. The peaks in the 1940's, 1950's, 1980's, 1990's were the highest since the 1800's.

We had a much lower peak in the early 2000's and it is quite possible that the next peak will be even lower.

Artic Ice Coverage

The Artic Ice is recovering and increased in area by about 25% between 2007 and 2009 and is forecast to increase again during 2010

Follow this link for more information Increase in Artic Ice Area between 2007 and 2010

The area of the Artic Ice is governed by global weather patterns and the wind that blows it into areas of warmer sea where it melts.

But there is little doubt that sunspot activity is involved and the increase in Artic Ice and the colder winter of 2009 - 2010 indicates that it is quite likely that we are moving into a period of much colder winters in Northern Europe.

Why haven't pools been damaged by ice in the past?

The answer to this is simple - we have not had a severe winter since 1981 - 82 and there were virtually no outdoor pools in England at that time. But since then over 100,000 have been built and in France where the winter temperatures are just as low as in the UK over 1 million have been built!

The other thing that I do konw because I remember it quite distictly is that the old outdoor swimming pools - or lidos as we called them when I was a kid - were all emptied in the winter!

In 2009 - 2010 we were very close to pool damage territory but we never quite had the low temperatures for long enough.

I have a concrete tank in my garden that collects rainwater that runs off my roof. I kept monitoring the ice thickness and it never got thicker than 6 centimetres and so not quite into the danger area as we will see later.

OK lets get technical!

When water turns to ice it increases in volume by about 9% and so in a 10 x 5 metre pool a sheet of ice across the surface of the pool will try and increase its size to nearly 11 m x 5.5 m!!!

An ice sheet forming across set of pool access steps in the form of a Roman or Greek end that are 3 metres wide will want to expand to just over 3.25 metres wide.

What actually happens is that the ice is only a thin sheet to start with and it does not start to act as a rigid strut until the ice gets to about 20 or 30mms thick and so there is no real pressure on the pool walls until that stage is reached.

The resistance of the ice sheet to bending increases with the cube of the ice thickness (thickness x thickness x thickness) so that an ice sheet 4 inches or 100 mms thick can impose a load 64 times higher than an ice sheet that is 1 inch thick. When the ice is 6 inches thick this increases to 216 times as much !!!

This effect is increased because as the ice gets thicker and colder it's strength also increases. So as the ice gets thicker its strength as a horizontal strut increases very rapidly for every extra inch of thickness

The forces exerted by the ice are very difficult to calculate exactly but if the ice is 100 mm or 10 cms thick the outward expansion forces on the pool walls could be as high as 50 tonnes per metre of pool wall - this would absolutely wreck any swimming pool structure.

What governs the thickness of the ice?

This is also very interesting and can be roughly calculated using the following formula :-

ice formation time equation

Please follow this link to see the how this formula is derived - http://www.sciencebits.com/StandingOnIce

And so if the water temperature is continously at 2 degrees below zero for 4 days the ice thickness will be the square root of 4 x 2 / 0.08 = 10 cms or 100 mms.

There are two things that can influence this rate of ice build up.

The first is water purity - for instance ocean salt water freezes on average at about minus 2 degrees Centigrade.

In these circumstances the the equation should be changed so that the water temperature is in degrees C below the actual freezing point of the water under consideration.

The second is that the formula assumes that the water below the ice is at freezing temperature. In a pool that might be on average a metre or more deep the colder water just under the ice layer will keep dropping down to the bottom of the pool because the cold water is heavier. So the water in the pool will need to be continuously mixed until it is all at the same temperature.

So shallow water will freeze quicker than deeper water - but this effect only delays ice build by a relatively short period and so does not really reduce the risk at all.

Cold winters and pool damage by ice

Although we had a pretty cold winter in 2009/2010 as shown in the link below we did not have a prolonged period of very low temperatures such that would have produced massive ice damage in swimming pools.

http://www.guardian.co.uk/uk/2010/mar/02/british-winter-coldest-30-years

And if we have one winter like 1962-63 when the temperature never got above freezing for 3 months every single pool that has not been emptied will be totally wrecked.

The Implications for the Design of Pool Structures

The implication for the design of any pool structure are quite stark.

If winters in the UK and France get a lot colder over the next few years all pools may need to be emptied in the winter.

However it is possible to mitigate the effects of ice sheets in swimming pools by:-

Whatever precautions are taken there is a residual risk that a winter like 1962-1963 will damage most pools beyond repair if they are not emptied in time.

However if you can empty your pool without risk of structural failure then any damage should be easily repairable.

But But But !!!

Just Remember that

  1. PolyBlok pools will be completely safe when empty because of the ARConWall slabs that anchor the tops of the walls rigidly in place irrespective of whether the pool is empty or not
  2. Every PolyBloK Pool Installer will provide a written winterisation procedure for every pool that he installs and this will include detailed instructions on how to empty your pool.
  3. If the weather forcasts imply that a prolonged period of very low temperatures is likely every owner of a PolyBloK will be able to simply empty it and save it.
